As photovoltaic (PV) power systems continue to expand in residential, commercial, and utility-scale applications, stable and well-controlled grid connection becomes essential. A photovoltaic grid-connected cabinet plays a key role in managing how solar-generated electricity is delivered to the public grid.

It does not generate power itself, nor does it increase energy production. Instead, it ensures that the power output from a PV system is safe, controlled, and compliant with grid requirements.

What Is a Photovoltaic Grid-Connected Cabinet?

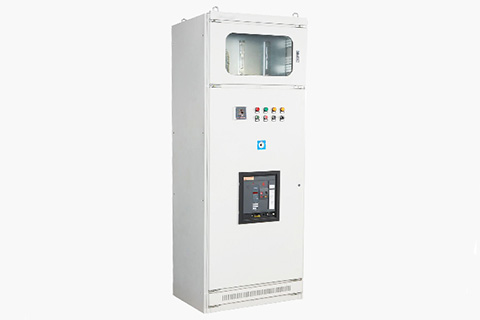

A photovoltaic grid-connected cabinet is an integrated electrical enclosure installed between PV inverters and the utility grid. It typically contains protection, switching, monitoring, and control components required for grid interconnection.

These cabinets are commonly used in:

Commercial and industrial solar PV systems

Distributed rooftop solar installations

Utility-scale solar power plants

In simple terms, it is the system’s “control point” before solar power enters the grid.

Key Ways a PV Grid-Connected Cabinet Manages Power Output

1. Coordinating Power Flow to the Grid

The primary function of a grid-connected cabinet is to manage the delivery of electricity from the PV system to the grid. It works with inverters to ensure that:

Output voltage matches grid voltage

Frequency aligns with grid standards

Power is fed into the grid only under acceptable conditions

If grid conditions are unstable, the cabinet helps isolate the system to prevent unsafe operation. Think of it as a gatekeeper that only allows power through when everything is in order.

2. Electrical Protection and Fault Response

To protect both the PV system and the grid, the cabinet includes various protection mechanisms, such as:

Overcurrent and short-circuit protection

Overvoltage and undervoltage protection

Ground fault protection

Anti-islanding protection during grid outages

These features ensure that power output is immediately interrupted when abnormal conditions occur, reducing the risk of equipment damage or safety hazards.

3. Switching and Disconnection Control

A photovoltaic grid-connected cabinet provides controlled connection and disconnection from the grid. This allows for:

Safe system startup and shutdown

Isolation during maintenance

Automatic disconnection during faults

This controlled switching ensures that power output is not delivered unpredictably, which is critical for grid stability.

4. Power Output Monitoring and Data Feedback

Many PV grid-connected cabinets include monitoring and communication devices that track:

Output voltage, current, and power

System operating status

Fault and alarm information

This data helps operators understand how the system is performing and identify issues early. In everyday language, it lets you see whether the system is working normally instead of guessing.

5. Supporting Grid Code Compliance

Utility grids require strict compliance with technical standards. A PV grid-connected cabinet helps meet these requirements by integrating certified components and standardized protection functions.

This ensures that the power output from the PV system is delivered in a controlled manner that does not negatively affect the grid or other users.

Why Power Output Management Matters

Solar power generation is variable by nature, as it depends on sunlight conditions. While inverters handle power conversion, the grid-connected cabinet ensures that this power is delivered responsibly.

It does not smooth sunlight fluctuations or boost output, but it does make sure that whatever power is produced is handled safely and correctly.

Conclusion

A photovoltaic grid-connected cabinet manages power output by controlling grid connection, providing essential protection, and supporting compliant operation. It serves as the technical bridge between solar PV systems and the utility grid.

In simple terms, it keeps solar power organized, safe, and well-behaved before it enters the grid. As PV systems continue to grow, these cabinets remain an essential part of reliable and responsible solar power integration.
